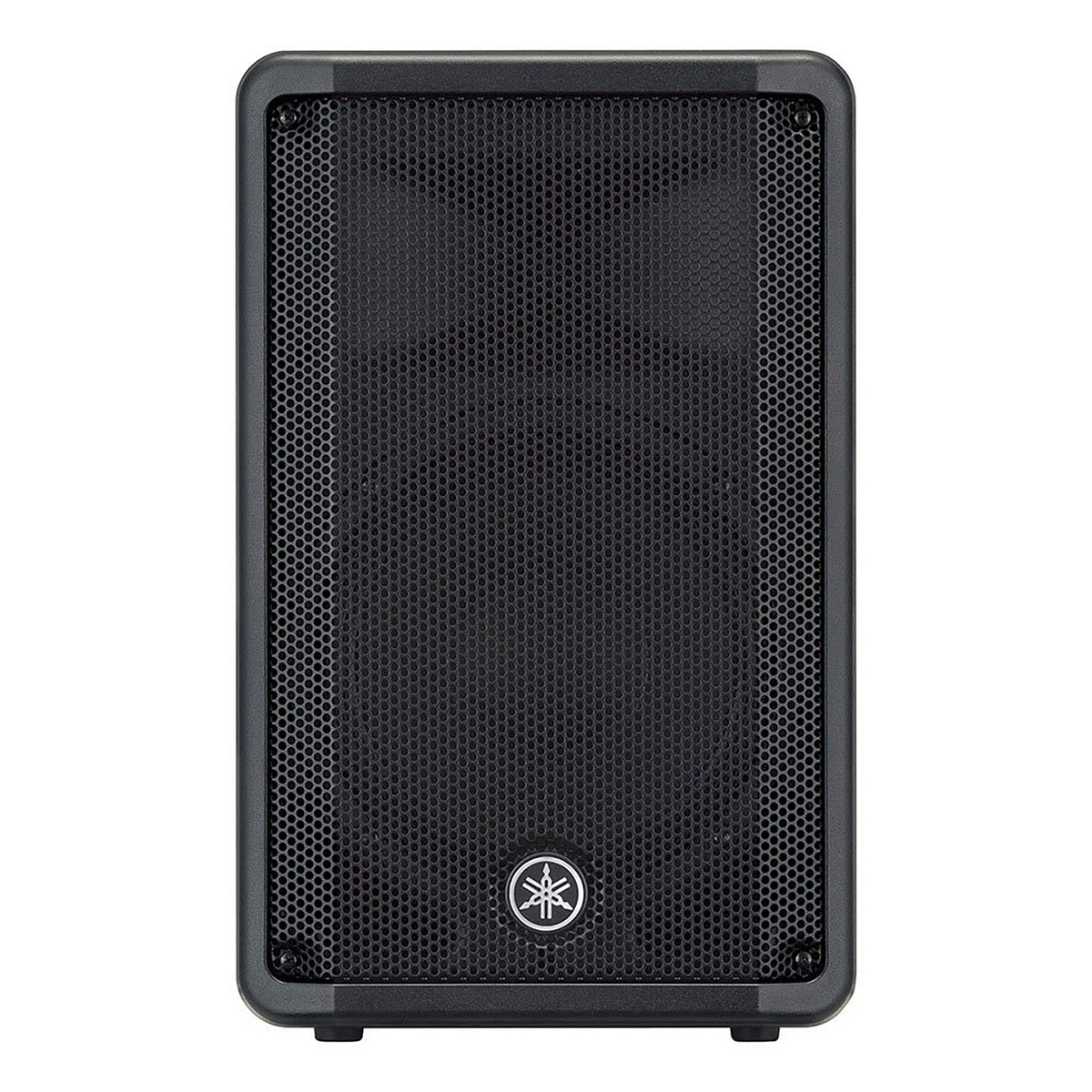

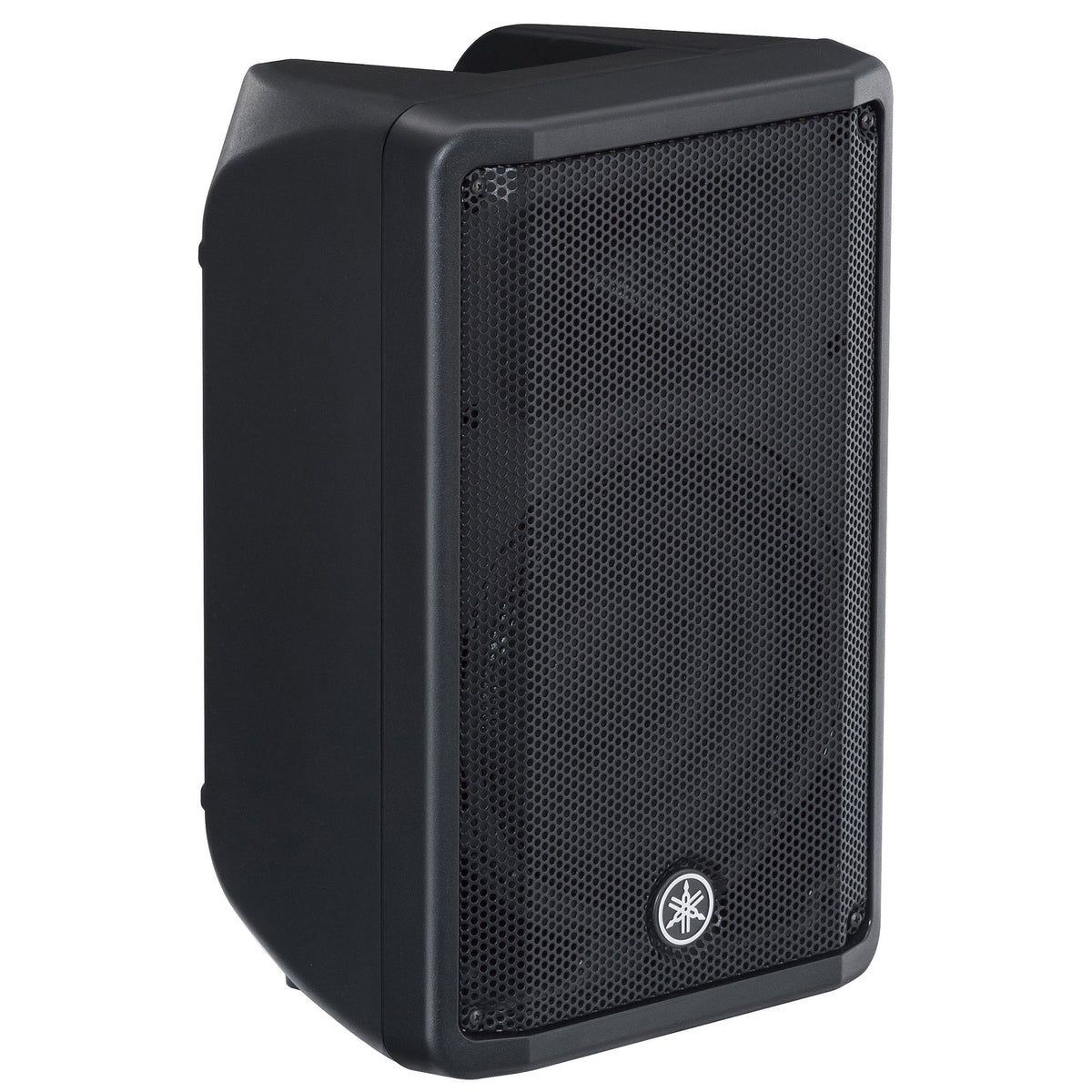

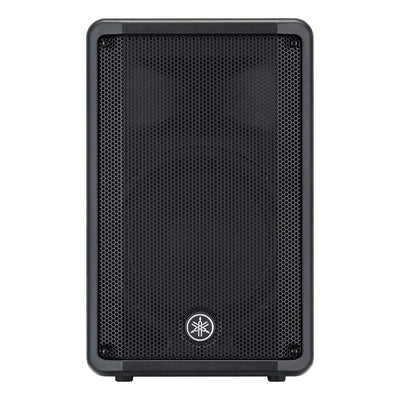

Yamaha 10" DBR Powered Speaker 700W
700 Watt Yamaha DBR powered speaker, 10" speaker diameter with 2 individual TRS 1/4 inch balanced inputs, XLR output, D-contour switch for effortless interchange between PA speaker and stage monitor Item ID: DBR10
Fast & Free Shipping Fast Shipping
Hassle-Free Returns
Independent Since 1960
Musicians Helping Musicians
Couldn't load pickup availability
In our stores
Pairs well with
Yamaha 10" DBR Powered Speaker 700W
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Highlights
- Easy-to-use integrated 2-channel mixer

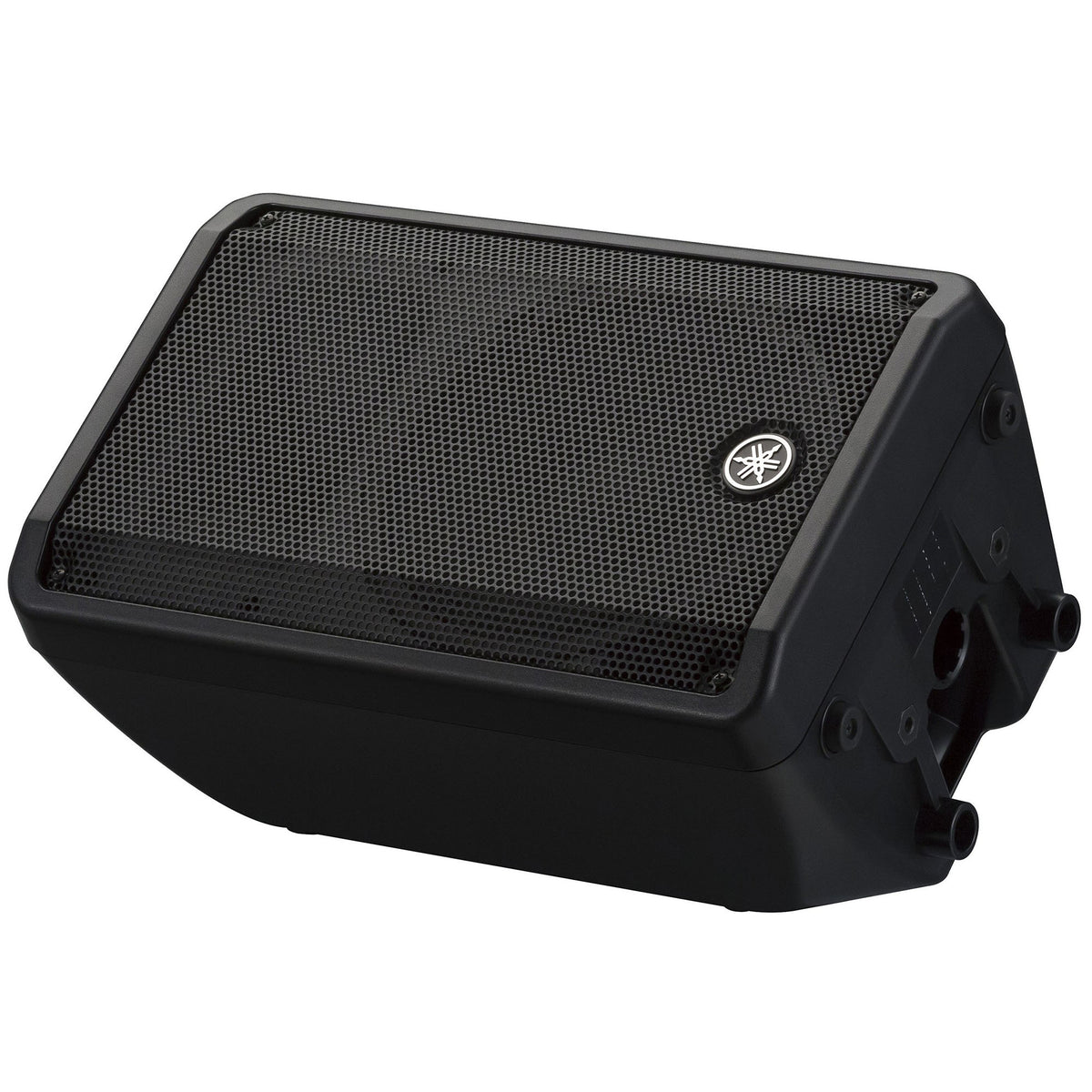

- Easy interchangeability between use as FOH speaker and stage monitor
- Multiple rigging points for ideal installation
- Rugged, yet very portable design with handle
- High fidelity, 700 Watt output Class D amplifier
Description
This Yamaha 10" DBR powered speaker delivers a whopping 700W output, providing maximum headroom and the capacity to withstand 129dB of sound pressure. The 10" DBR Powered Speaker empowers users to confidently amplify vocals, keyboards, guitars, and various audio sources while ensuring authenticity and optimizing sound replication through Yamaha's intuitive FIR-X speaker tuning.
Designed for versatility, these speakers excel in amplifying sound for audiences or serving as stage monitors by easily toggling the Yamaha DBR 10" active speaker's D-Contour switch. Featuring a bottom port for raised stand use and rubber feet for ground placement, these speakers can be positioned effortlessly. The DBR also incorporates an adjustable high-pass filter, offering flexibility to accommodate low-end frequencies from other sources. The powered speaker comes with IEC power connectivity, eliminating the need for an additional power amp source to amplify sound.
Specs
- Speaker type
- 2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range (-10dB)
- 55Hz – 20kHz
- Crossover
- 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
- Output power
- Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
- Maximum output level (1m; on axis)
- 129dB SPL

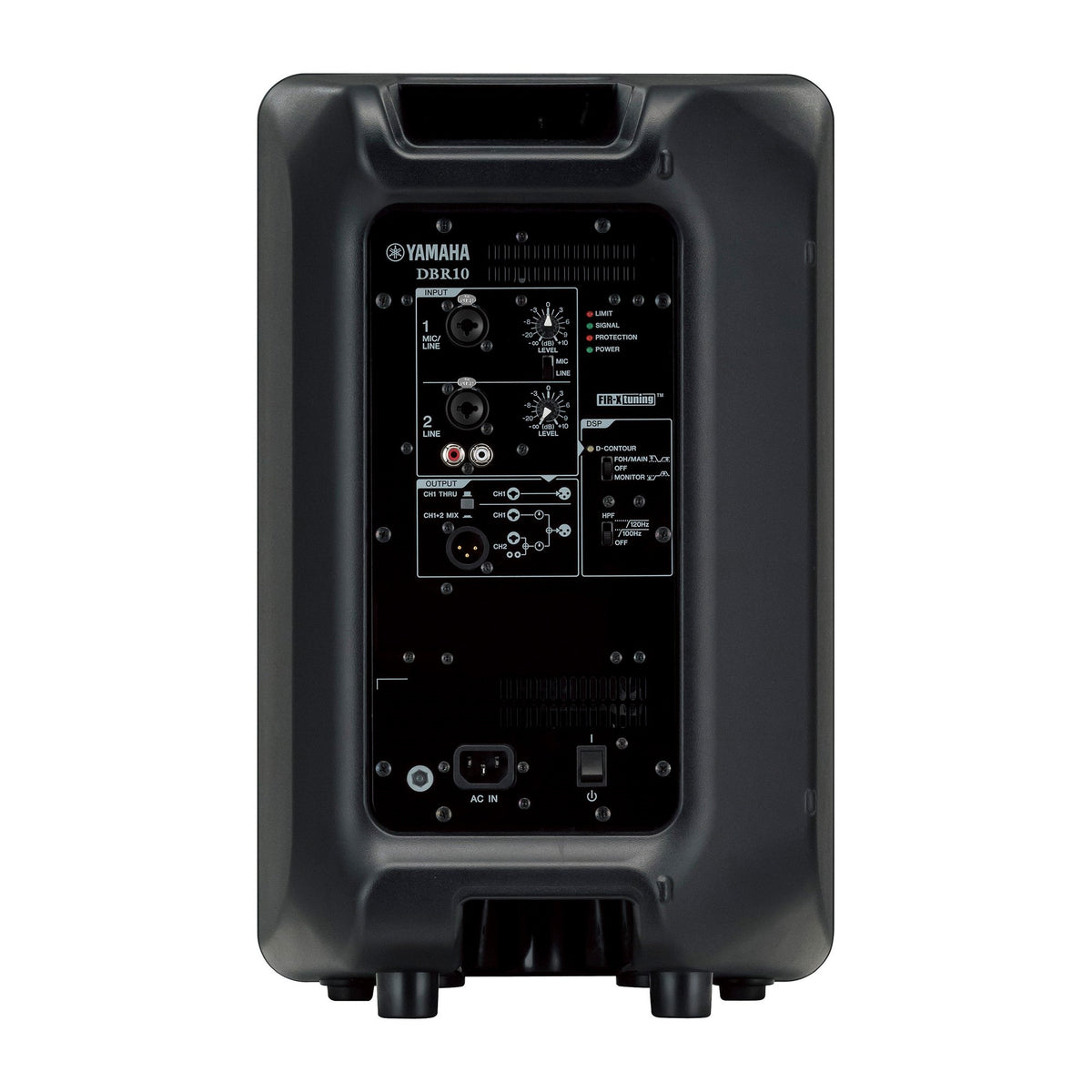

- I/O connectors
- INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- Heat dissipation
- Fan cooling, 4 speeds
- Dimensions
- W 12.1"/H 19.4"/ D 11.4"
