Franklin Audio SS-6 Switchable Input Stereo DI
Stereo-enabled DI box with twelve mono/six stereo inputs, two XLR DI outputs, ground lift switches, thru outputs, and no power supply required Item ID: SS6



Fast & Free Shipping Fast Shipping
Hassle-Free Returns
Independent Since 1960
Musicians Helping Musicians
Couldn't load pickup availability
In our stores
Pairs well with

Franklin Audio SS-6 Switchable Input Stereo DI
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Highlights

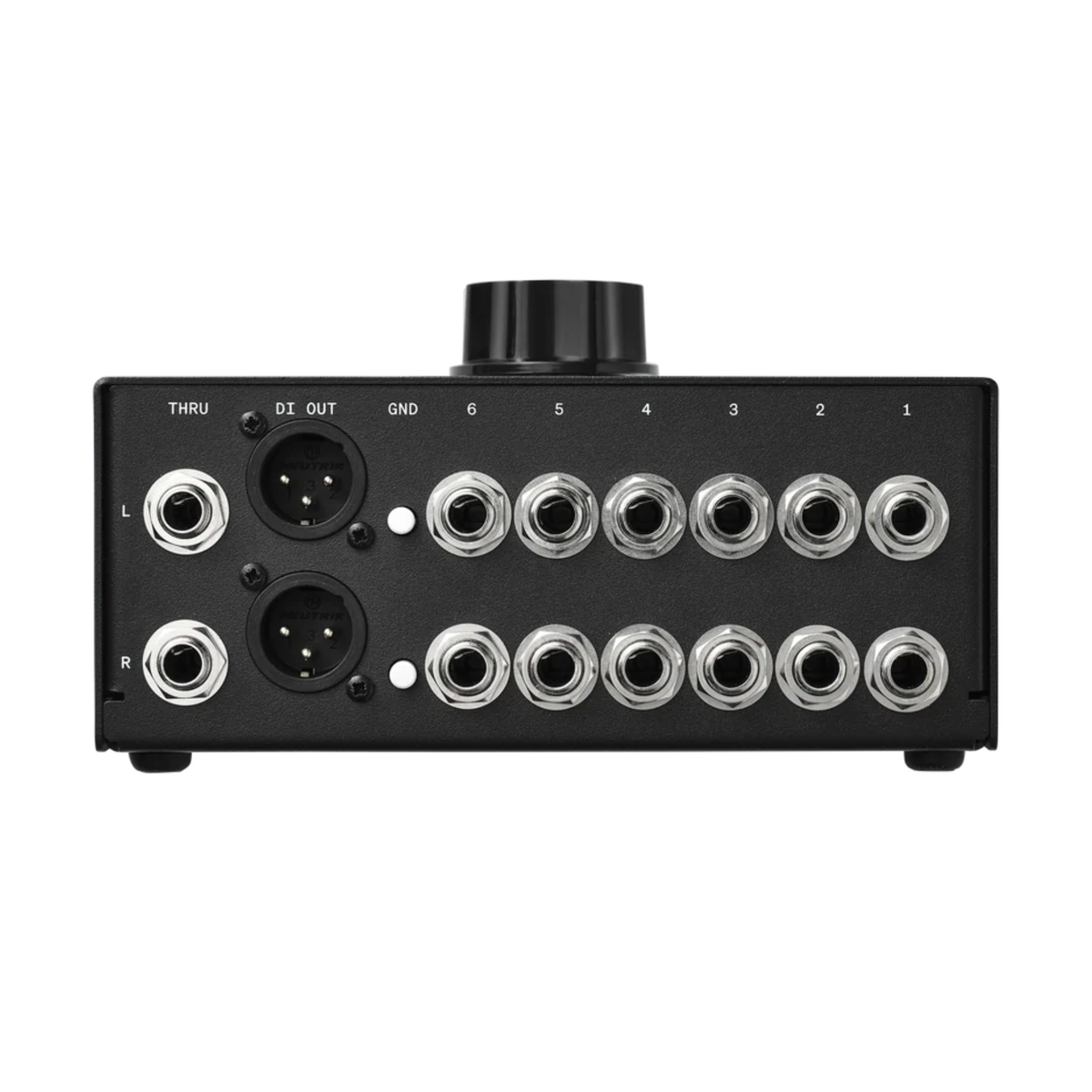

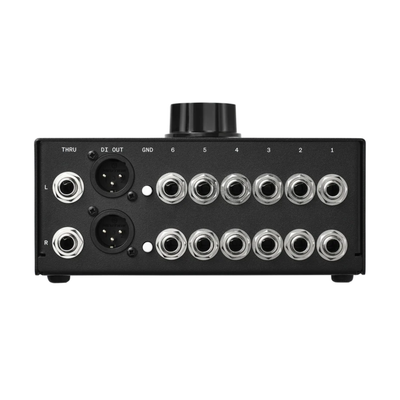

- Twelve mono (or six stereo) 1/4" inputs to two XLR DI outputs

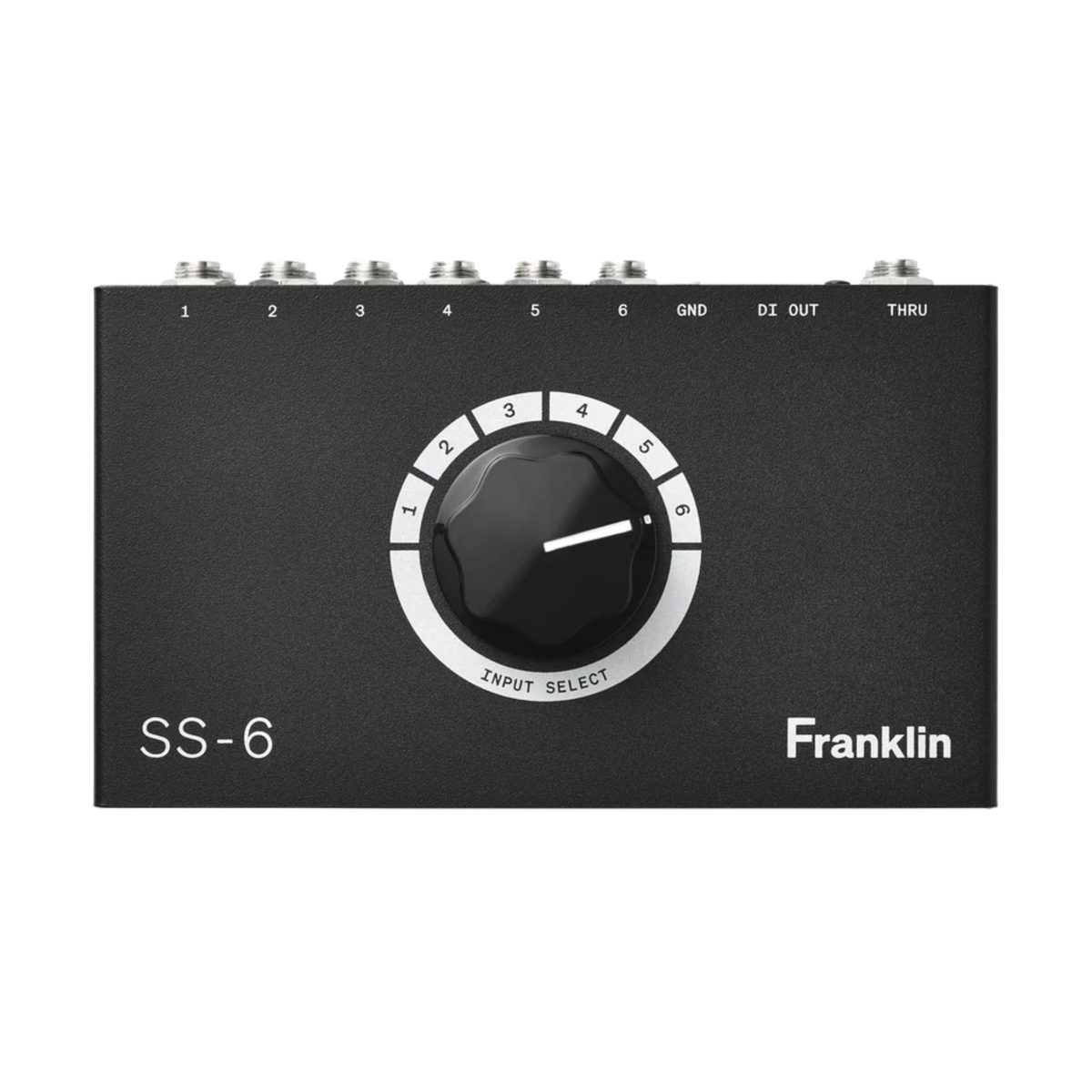

- Six-way input channel selector switch
- Two 1/4" thru outputs for parallel routing
- Two onboard ground lift switches
- No external power supply required for operation
- Designed and built in Sydney, Australia
Description
For the tireless studio tinkerers of the world who already have it all plotted out in their head but just need that one piece to bring it all together, we've got the "Eureka" moment of the Franklin Audio SS-6 Switchable Input Stereo DI.
There's always that image of the "dream" studio setup. A dream of cable cleanliness, an effortless "this-goes-here-that-goes-there" with the capacity for easy revision and expansion that always seems ever-so out of reach. With something like the Franklin Audio SS-6, that dream becomes all the more closer to reality. This Franklin Audio creation is made for those with expansive studio setups in need of a clean, multi-stereo-input-enabled device for running multiple inputs to two direct outs and seamlessly switching between them.
The Franklin Audio SS-6 features six sets of stereo inputs and two XLR DI outs. With this design, the SS-6 is ready for anything as you build up your rig around it. A six-way rotary dial quickly swaps between input sources – no more reaching around, over, or under your desk! Accommodating up to six stereo input sources or twelve mono sources, the SS-6 routes out to two balanced stereo XLR DI outputs for your audio interface, your mic preamp chain, whatever you've got. What's more, two quarter-inch thru outputs allow for input signal use in parallel processing or studio monitoring. The SS-6 is fitted with pristine, transformer-balanced DIs for crystal-clear transmission and requires no power source to operate.
"If they just had a thing that did this..." For every time that all-too-familiar thought hits you, there's a Franklin Audio device ready for action.
Specs
- Type
- Direct Out
- Power Supply
- None Required
- Ins - Outs
- 12 x 1/4" In - 2 x XLR DI Out, 2 x 1/4" Thru
- Stereo/Mono
- Mono / Stereo
