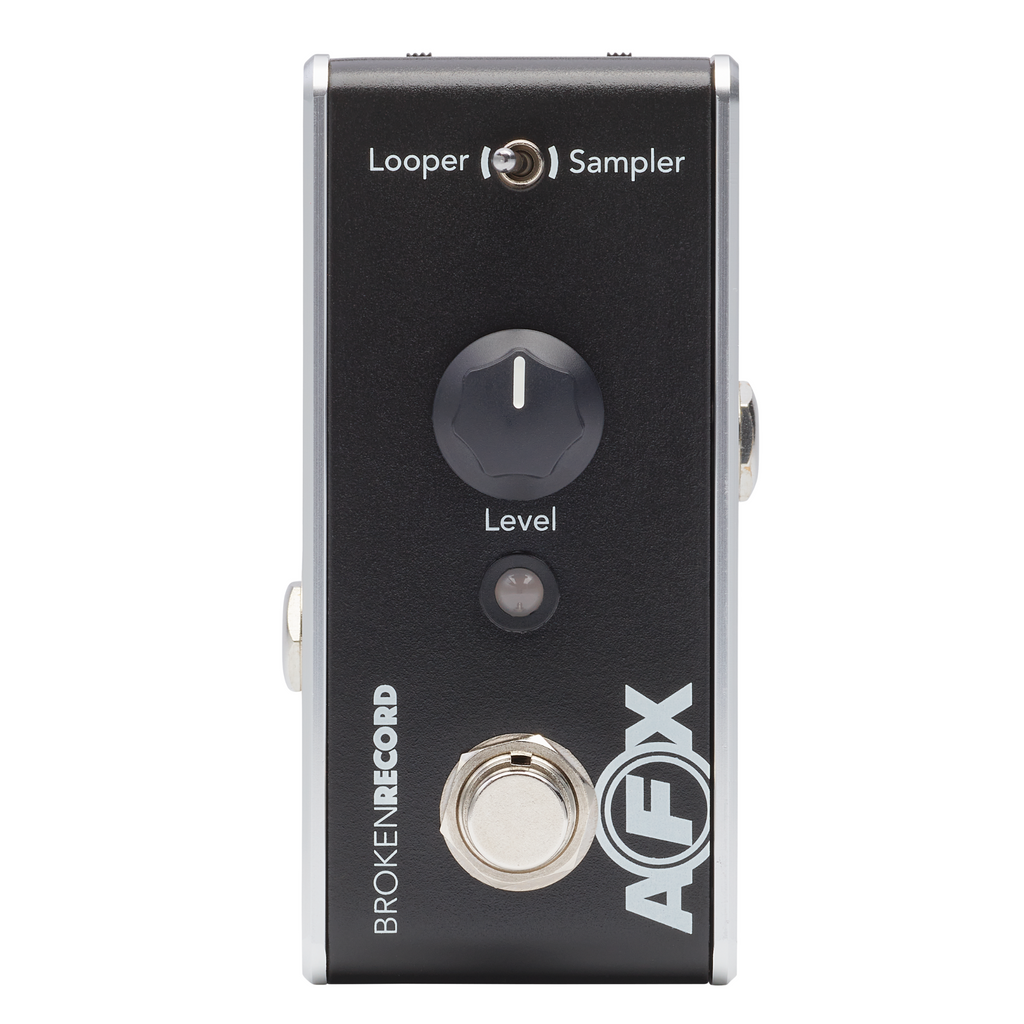

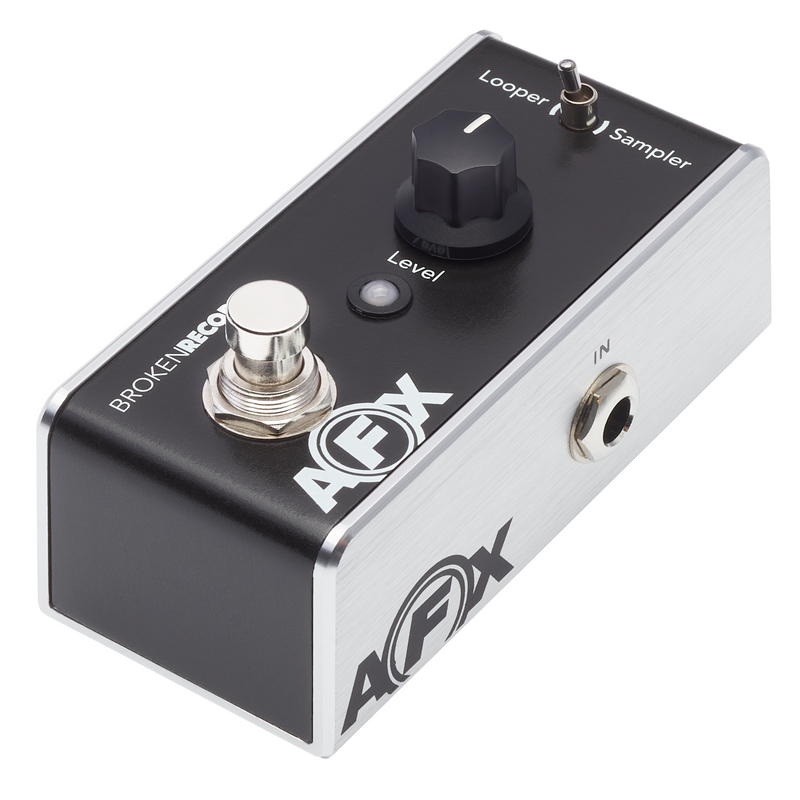

The Fishman AFX Broken Record Mini Looper/Sampler is a powerful tool for capturing and creating complex, layered loops with ease.
With high-quality 24-bit, 44.1kHz audio recording of up to 6 minutes, the AFX Broken Record lets you capture cool ideas and build on them, or even play along with audio you pre-load from your computer. Endless overdub capability means you can layer your playing to create complex, multi-part arrangements. But the real magic of the AFX Broken Record is its intuitive one-button operation, which makes it easy to create loops and change settings on the fly.
Built-in memory ensures that your loops will be retained even after the power is disconnected, so you can unplug at your gig and move your loop to your computer later. And with the free AFX PhraseTransfer app, available for download at fishman.com, transferring your loops to your computer has never been easier.
Of course, the AFX Broken Record also features true bypass, ensuring that your signal remains pure and unaltered when the pedal is disengaged. And for those who prefer a buffered bypass, the AFX Mini effect pedals are switchable.
Like all AFX Minis, the AFX Broken Record is compatible with standard guitar instrument cables. And with its innovative dual channel audio path, you can create two independent effect chains with a single series of cables. Simply connect several AFX Minis together with TRS "stereo" guitar cables and set the Audio Path switch on each pedal to "Tip" or "Ring." Pedals set to "Tip" will create one effect chain while pedals set to "Ring" will create another effect chain.
- Drag and drop WAV file transfer capability
- True Bypass with options for buffered bypass or mute
- Dirt simple operation
- Innovative "Dual Path" routing
- 24-bit // 44.1kHz recording quality
- Super compact design

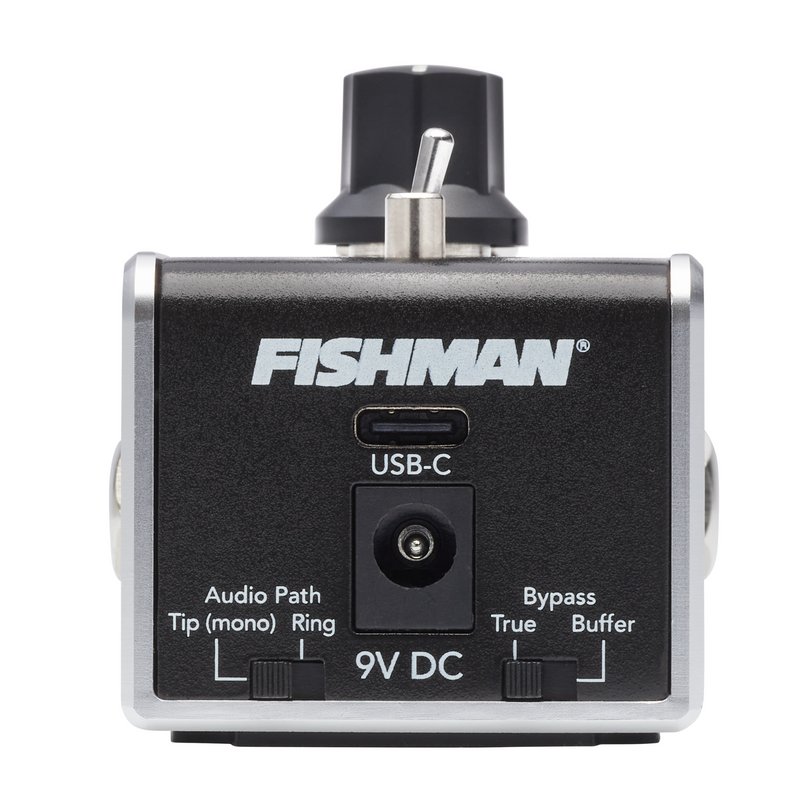

|Power Supply:||9V DC center negative (not included)|
|True Bypass/Buffer:||Configurable true or buffered bypass|

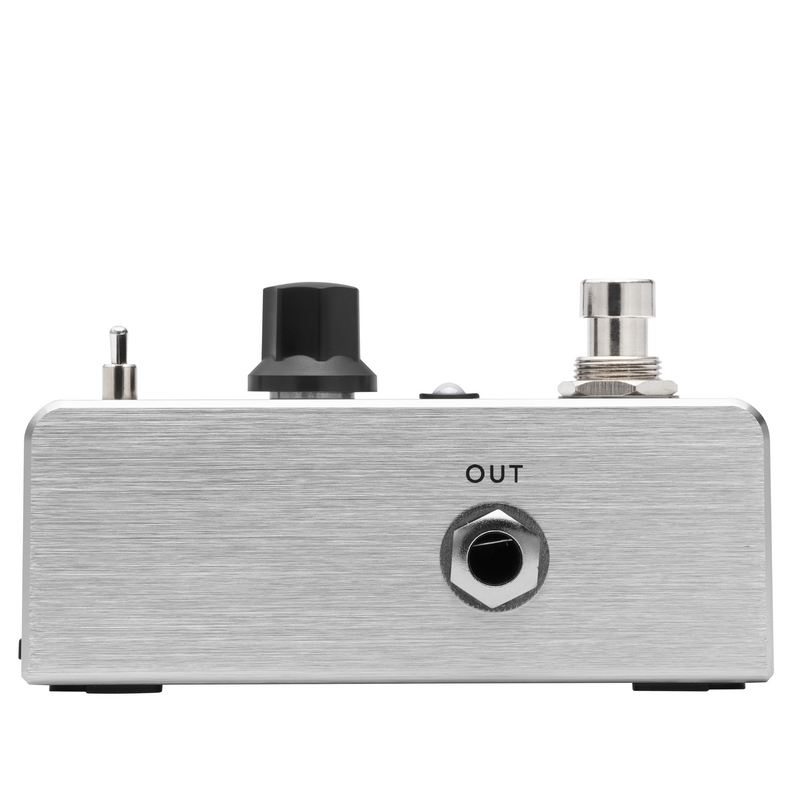

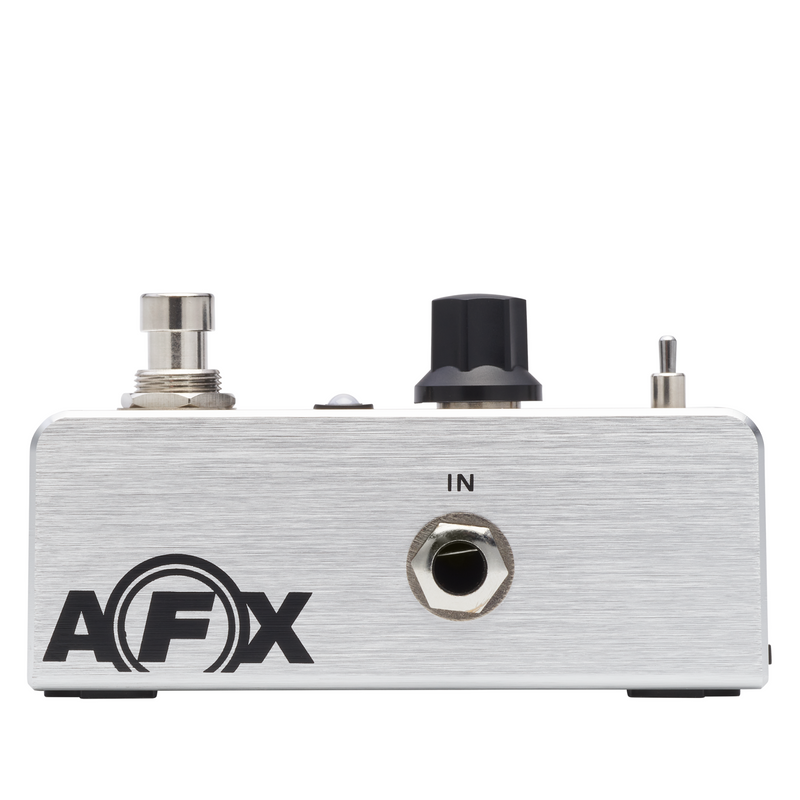

|Ins - Outs:||1x 1/4" TRS in; 1x 1/4" TRS out|
|Stereo/Mono:||Dual Path routing|
|Analog/Digital:||Digital - 32-bit DSP|
