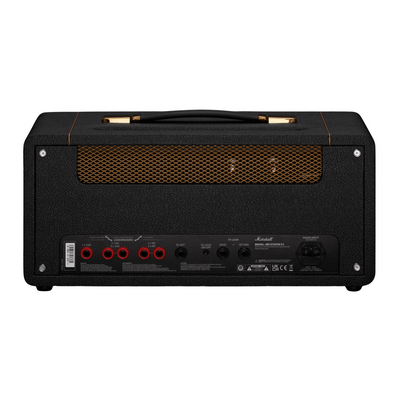

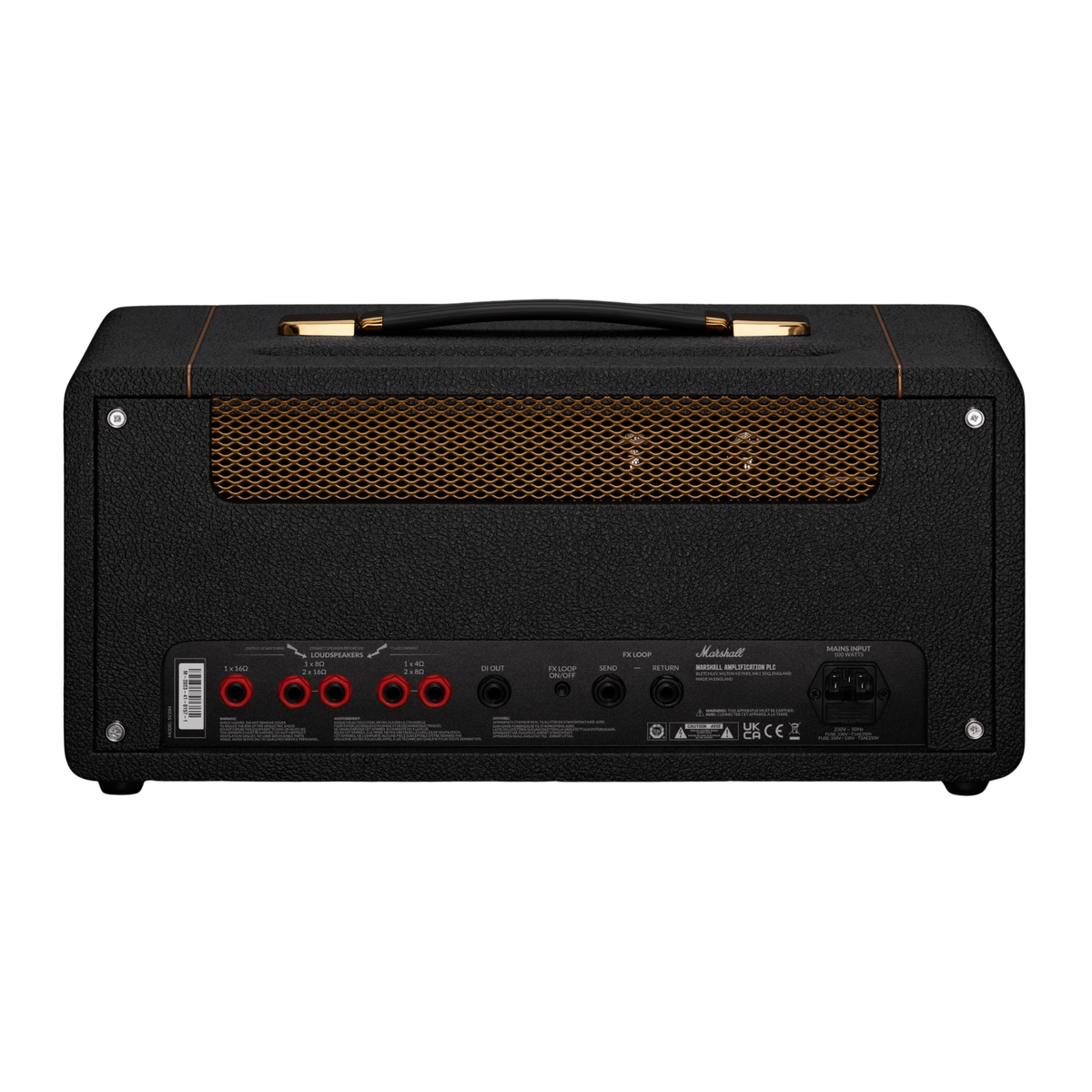

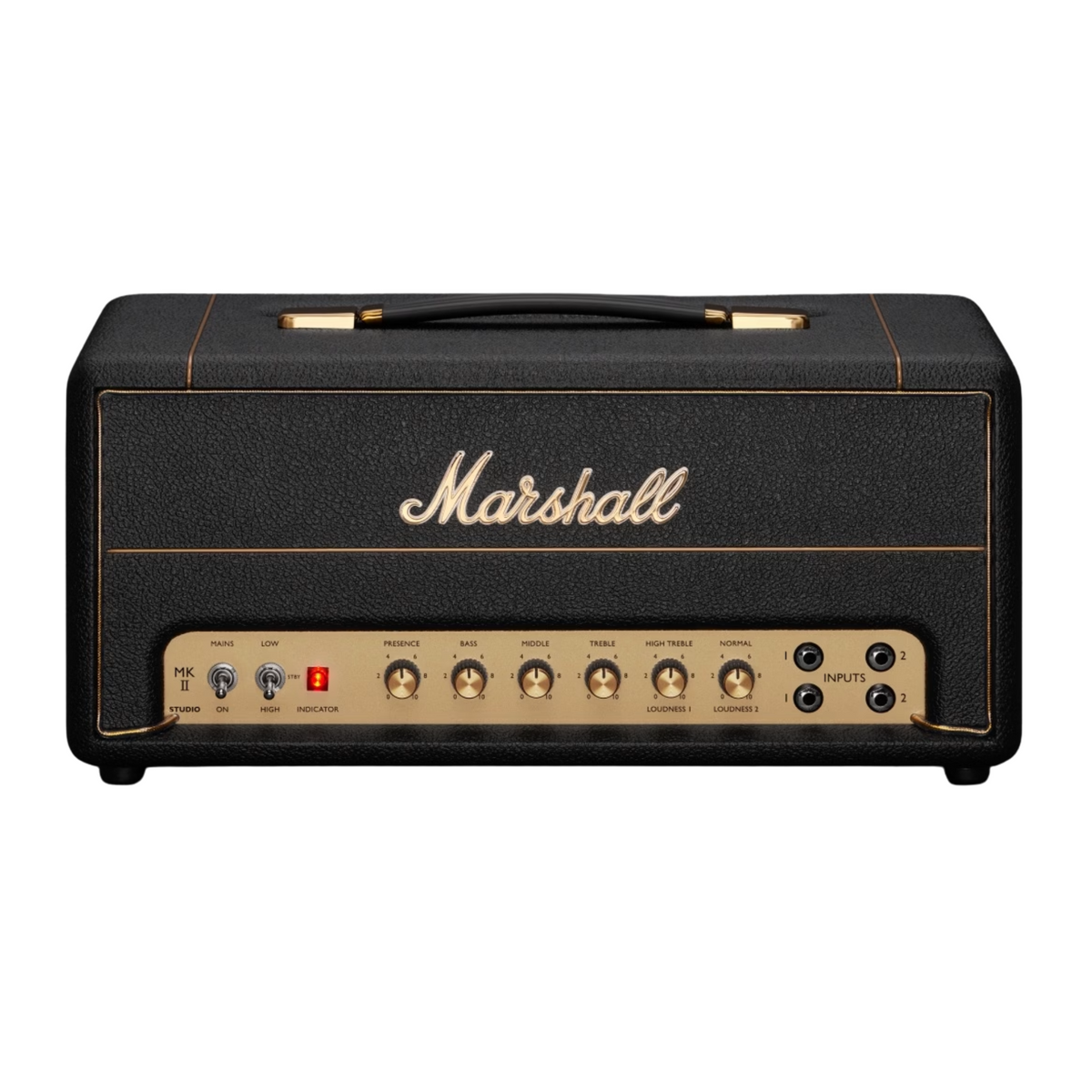

Marshal SV20H Studio Vintage Guitar Amplifier Head, 20 W
Legendary Plexi amp head with selectable 20-/5-watt power, 5 x speaker outs, switchable FX loop, and DI 1/4" output Item ID: MSV20HU
Fast & Free Shipping Fast Shipping
Hassle-Free Returns
Independent Since 1960
Musicians Helping Musicians
Couldn't load pickup availability
In our stores
Pairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Highlights
- Inspired by the original 1959SLP head
- Classic Plexi voicing in a studio-friendly format
- 20 W or 5 W selectable output power
- All-tube circuit with 2 x EL34 and 3 x ECC83
- High treble and normal channels, bridgeable
- Switchable series effects loop
- 16Ω, 8Ω, and 4Ω speaker output options
- Hand-built in the UK at the Bletchley factory
Description
The Marshall SV20H Studio Vintage captures the essential character of the iconic 1959SLP Plexi in a more compact, controllable 20-watt head format. Powered by a pair of EL34 output valves and a trio of ECC83s—including one serving phase-splitting duty—it delivers the unmistakable harmonic density and touch sensitivity associated with full-size vintage Marshall stacks. The selectable 5-watt mode adds flexibility for home or studio applications without compromising the amp’s sonic identity.
This dual-channel design includes a classic high treble and normal input configuration, both of which can be used independently or creatively blended using a patch cable. EQ controls for bass, middle, treble, and presence offer further tonal refinement, whether you’re chasing bright articulation or thick, woolly saturation. A switchable series effects loop is built in for those needing outboard integration. The SV20H also provides output impedance options for 16Ω, 8Ω, or 4Ω speaker cabinets, expanding its compatibility across a wide range of rigs. Hand-built in the UK, it’s a thoroughly engineered tribute to the original, right down to its tonal aggression.
Specs
- Power Section
- 2 x EL34
- Preamp Section
- 2 x ECC83, 1 x ECC83 Phase Splitter
- Speaker Config
- None
- Wattage/Ohms
- 20 W or 5 W Operation with 16Ω / 8Ω / 4Ω Outs
- Effects
- None
- Channels
- 2, Bridgeable
- FX Loop
- Yes (Switchable)
- Footswitch
- No
