Description
Highlights

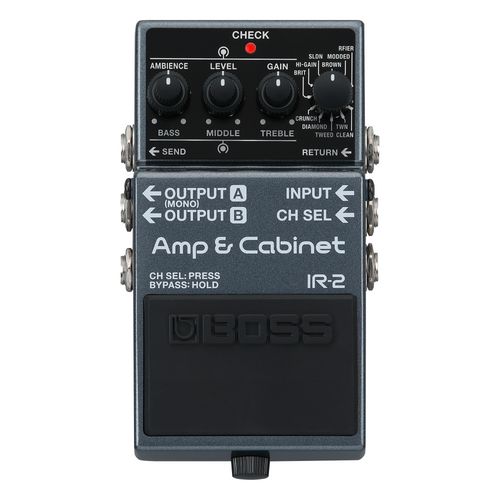

- Premium amp emulation in a compact Boss pedal.
- High fidelity 32-bit processing and 96 kHz sampling rate.
- Choose from 11 amp types with Celestion Digital IRs.
- Simple controls for quick sound customization.
- Mono/stereo loop for post-amp effects versatility.

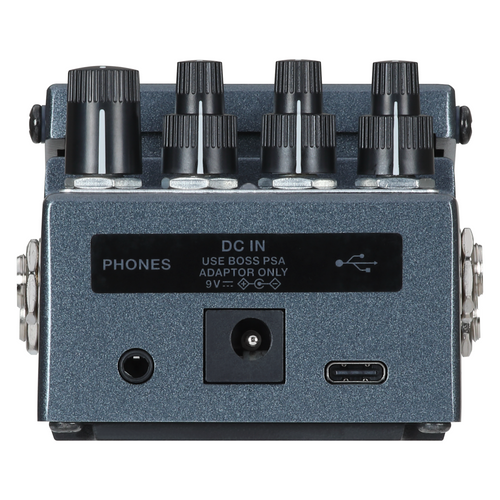

- USB-C interface for easy integration with computer software.
- Switch between two amp/cab tones easily.
- Dedicated IR-2 IR Loader app for custom cab IRs.
Specifications
| Sampling Frequency: | 96 kHz |
| AD Conversion: | 24 bits + AF method |
| DA Conversion: | 32 bits |
| Processing: | 32-bit floating point |
| IR cabinet data format: | Mono, Maximum 500 ms, 44.1/48/96 kHz, 16 bits linear/24 bits linear/32-bit floating point |
| Preset IR cabinet: | 11 |
| User IR cabinet slot: | 11 |
| Nominal Input Level: | INPUT, RETURN: -20 dBu |
| Maximum Input Level: | INPUT, RETURN: +7 dBu |
| Input Impedance: | INPUT, RETURN: 1 MΩ |
| Nominal Output Level: | OUTPUT A (MONO), OUTPUT B, SEND, PHONES: -20 dBu |
| Maximum Output Level: | OUTPUT A (MONO), OUTPUT B, SEND, PHONES: +7 dBu |
| Output Impedance: | OUTPUT A (MONO), OUTPUT B, SEND: 1 kΩ PHONES: 44 Ω |
| Recommended Load Impedance: | OUTPUT A (MONO), OUTPUT B, SEND: 10 kΩ or greater PHONES: 44 Ω or greater |
| Bypass: | Buffered bypass |
| Power Supply: | Alkaline battery (9 V, 6LR61 or 6LF22, commercially available) AC adaptor (PSA series: sold separately) |
| Current Draw: | 160 mA |
| Dimensions: | 73 (W) x 129 (D) x 59 (H) mm 2-7/8 (W) x 5-1/8 (D) x 2-3/8 (H) inches |
