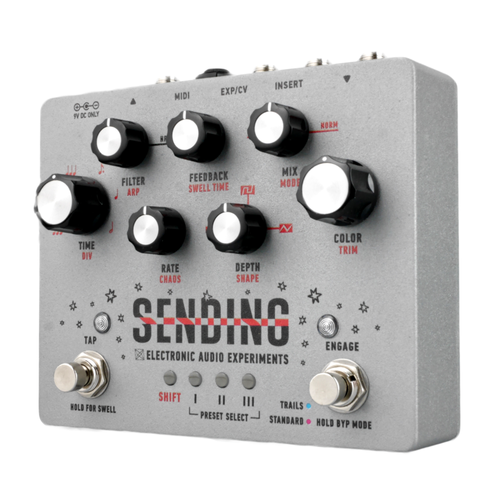

Electronic Audio Experiments Sending V2 Analog Delay Effect Pedal

Digitally-controlled analog delay with MN3005 chips, LFO modulation section, MIDI and expression control, FX loop, and preset bank | Item ID: SENDINGV2

$649.00
In-Stock and Ready to Ship

Ask an Expert

Fast & Free Shipping

Hassle-Free Returns

Expert Service

Description

Highlights

  • Digitally-controlled analog delay effect with two MN3005 bucket brigade chips
  • Analog delay tone with up to one second of delay time - extendable to two with MIDI or tap
  • LFO modulation with waveform selection and Chaos randomization
  • Tap tempo control footswitch with Swell function
  • Three-slot preset bank with up to thirty-two via MIDI
  • Standard and trails bypass switch modes
  • 1/4" expression/CV control connection over one or multiple settings
  • TRS MIDI input for control changes, presets, or clock sync
  • Web-enabled firmware updates via MIDI connection
  • 1/4" FX loop in connection
  • Standard nine-volt center negative 350mA power requirements

Specifications

Type: Delay
Power Supply: 9 Volt DC Center Negative 350-380mA Power Supply (Not Included)
True Bypass/Buffer: Buffered
Ins - Outs: 1 x 1/4" In - 1 x 1/4" Out
Stereo/Mono: Mono
Expression Out: 1 x 1/4" Out
Analog/Digital: Analog, Digital Control
Battery Connection: None
Additional Connections: 1 x 1/4" FX Loop In, 1 x 1/4" MIDI In
