Description
Highlights
Specifications
Input Jack: | Connect instrument via ¼” cable. |
Preset: | Change presets 1 to 5. Long press to store. |
Input: | Controls analog input gain. |
Compression: | Adjust dynamic compression. |
Drive: | Controls gain. Long press for Noise Gate. |
Tone: | Controls Drivel tone/ Octaver filter. |
Level: | Controls Drive/ Tweeter level. |
Blend: | Controls Drive/ Octaver blend. |
Preset Vol: | Controls preset volume. Toggle between 7 IR slots. |
Master: | Controls overall volume. Long press for Bluetooth pairing. |

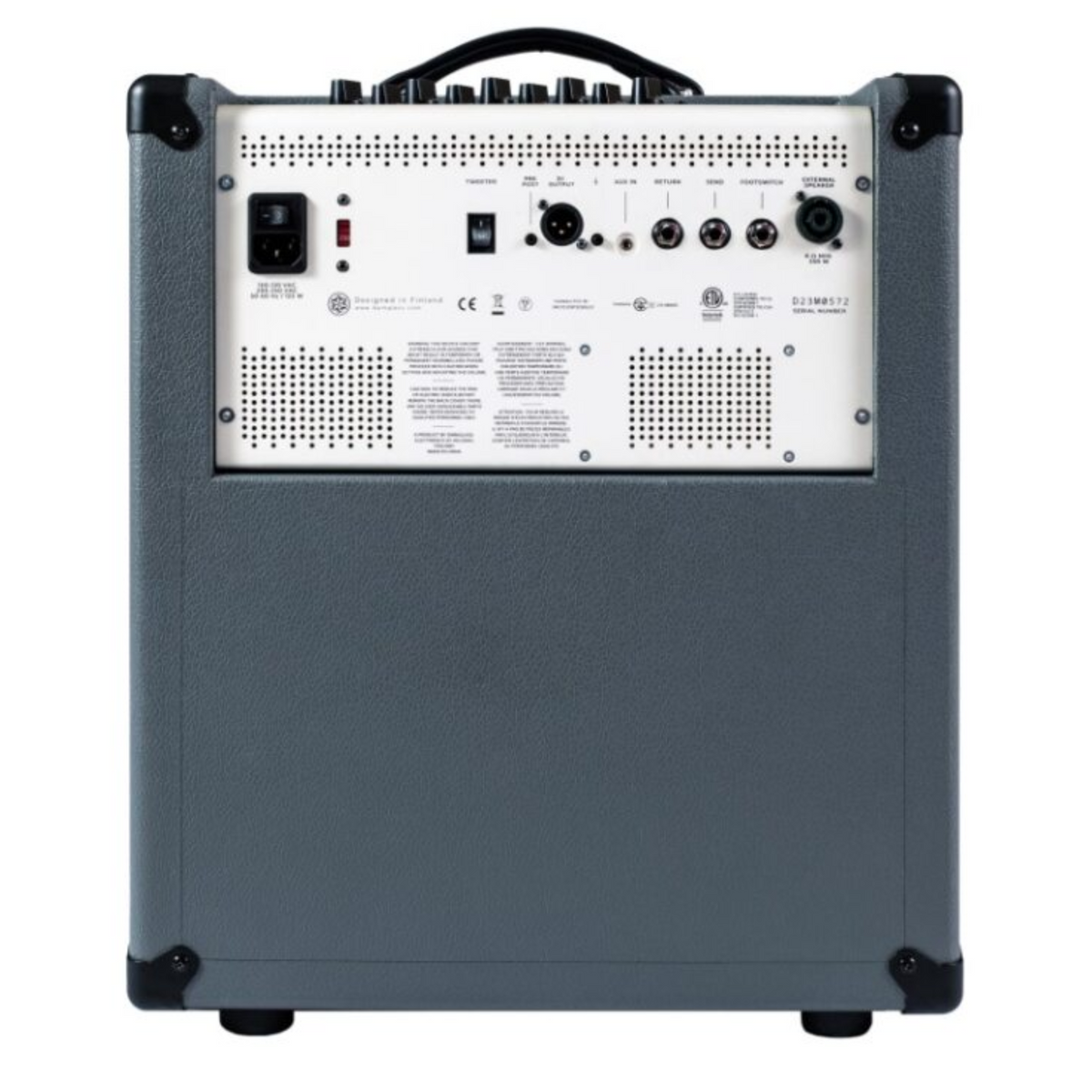

AC Socket: | Use to feed power to the amplifier. Set voltage selector switch. |
MIDI In: | Standard DIN connector for MIDI footswitch. |
USB: | Unlocks USB audio interface capabilities. |
Post DI Output: | Send processed signal to console, etc. |
Ground Lift: | Lift ground of XLR outputs. |
Pre DI Out: | Send unprocessed signal to console, etc. |
Line Out: | Send processed signal without IR. |
Line In: | Accepts line level signals from amp modeler, etc. |
Send: | Send signal to outboard gear. |
Return: | Receive signal from outboard gear. |
External Speaker: | Connect to external speaker cabinet. |
Woofers: | Custom Design Eminence Speaker |
Horn: | WGS-410 |
Cabinet Material: | Balsa Wood |
Power Rating: | 500 Watts |
Dimensions: | Width: 43.0 cm / 17″ Depth: 49.5 cm / 19.4″ Height: 43.5 cm / 17.1″ Weight: 14.5 kg / 32 lb |
