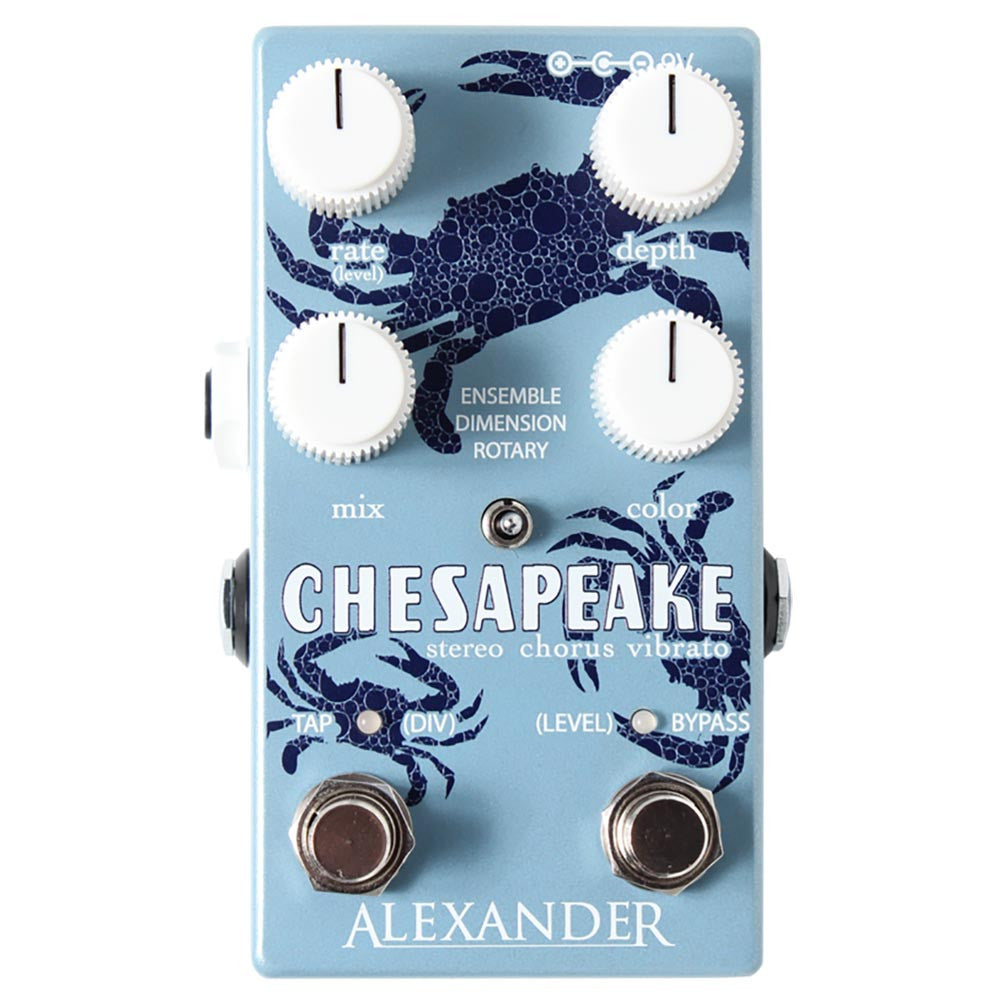

Alexander Chesapeake Stereo Chorus Vibrato Pedal
Item ID: CHESAPEAKE
Warning: Those who venture too far into the depths of the Chesapeake may be overcome by the harmonic waves and slip into a swirling, dream-like euphoria. Swim at your own risk.
Rate (Level) — Adjusts the rate of modulation from a slow swirl to a rapid flutter. Turning this knob cancels the Tap Tempo setting. Holding the Bypass / Level footswitch allows you to adjust the overall volume of the effect. The pedal stores this setting in its memory for future use.
Depth — Controls the amount of modulation from subtle to intense.
Color — Adjusts the tone or character of the chorus effect.
Mix — Blends between the dry and the modulated signals.
*Hint: For pitch vibrato, set the Mix knob fully clockwise.
Tap Tempo / Division - tap twice to set the modulation rate. The LED above the Tap switch flashes to indicate the current rate and division. Hold to cycle between quarter-note (green,) eighth-note (orange) and half-note (red) tap tempo divisions.
Remote Tap Tempo Jack - connect a normally-open momentary footswitch to this jack to set the modulation time remotely. Hold down the remote footswitch to change tap divisions.
*Hint - the Mix knob changes the character of the sound dramatically. High Mix settings yield a pitch vibrato in Ensemble and Dimension modes, and a more intense tremolo + vibrato effect in Rotary mode.
Ensemble — Traditional single-voice chorus tones live here. The dry signal is mixed with a varying time-delayed signal, resulting in a shifting, bubbling thickening effect. The Color knob controls the tone of the chorus voice, allowing the effect to be more or less present in the mix.
Dimension - Adds a second chorus voice sweeping opposite from the first, designed to reduce the characteristic "warble." This mode produces a less animated, more subtle thickening of the signal and sounds great clean or distorted. The Color knob controls the brightness of the chorus tone.
Rotary - combines a sweet chorus with a smooth tremolo to mimic a rotating speaker effect. The Color knob controls the balance between the upper rotor vibrato and the lower rotor tremolo tones.
|Type:||Chorus - Vibrato|
|Power Supply:||9v DC 2.1mm Negative Center|
|True Bypass/Buffer:||Buffered Bypass|
|In's - Out's:||1 In - 1 Stereo Out|
|Expression Out:||Tap Tempo Expression|
|Analog/Digital:||Digital 24-bit DSP architecture|
